It starts so small you barely notice. You nudge the temperature a little further toward cold, and it works. Fine. A few weeks later you are nudging it a little further than that. Then further still.
Then the van turns into a light switch. Cold for two days. Hot for two days. Cold again, for no reason you can name.
Then it is hot, and only hot. It blows and blows and blows, and there is nothing you can do about it.
In Florida that is not a minor annoyance. That is a van you do not want to get into.
And that is the moment you start turning the knob harder.
What You Are Actually Doing to It
There is a stop plate inside that panel. It is small, it is plastic, and it was never built for a frustrated hand.
So you crank it to the limit. Then past the limit. Then the knob spins a full 360 and keeps going, and now it does not point at anything at all.
Here is the part worth sitting with for a second. The panel was already broken before you touched it. Something failed inside on its own. You just finished it off from the outside. Almost every one of these that reaches our bench arrives with both: the original fault, and the damage from six months of arguing with it.
That is not a character flaw. That is what anyone does with a van that will not stop blowing hot air.
Three Names, One Van
This is the part that keeps owners lost for months.
The 903 body, 2003 through 2006, was sold as a Mercedes Sprinter, a Freightliner Sprinter, and a Dodge Sprinter. Three badges. Same van. Same climate control panel.
So the man with a Freightliner searches for Freightliner Sprinter climate control problems and finds almost nothing, because everyone writing about it says Mercedes. The man with a Dodge has the same day. Both of them have the exact same part sitting in the exact same dash, and neither can find anyone talking about it.
If you have a 903, it does not matter which name is on the grille. This is your panel.
The Part Numbers Do Not Help You Either
There is more than one, and which one you have depends on the year:
- Dodge 5103 643AA = Mercedes A0004463428 - Dodge 5103 644AA = Mercedes A0004463628 - Dodge 5103 690AA = Mercedes A0008306285 - plus A0008306585KZ on 2001 through 2005 vans
Go read a forum thread on this and you will find owners listing those same numbers and stating plainly, in writing, that they do not know which one does what. That is not owners being careless. That is how thin the information is on these vans.
What Actually Fails
A resistor. That is the standard failure on this panel, and it is the single most common reason climate control dies on these vans.
Not the compressor. Not a leak. Not the refrigerant. The electronics in the box you have been fighting with.
Worth knowing before you spend a season chasing the air conditioning system itself.
What This Is Not
There are gears and cables behind the dash that move the flaps, the ones that decide whether air goes to your feet, your face, or the windshield. Those are mechanical, and they break too.
If your air comes out cold but out of the wrong vents, that is a different problem and this is not your article. We are an electronic laboratory. We do not do that work, and we would rather say so now than after you ship us something.
How It Goes

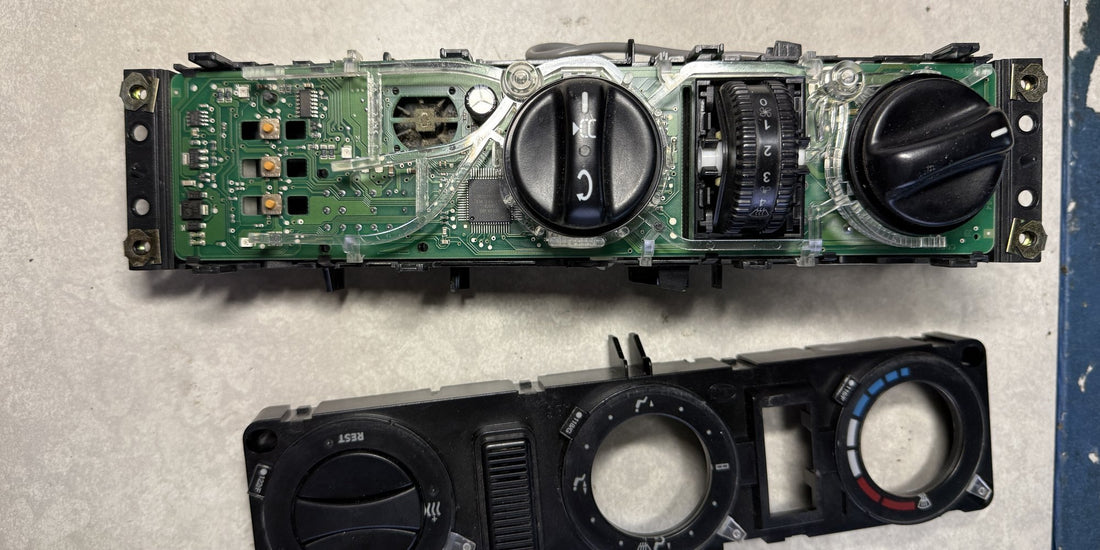

You take the panel out yourself. It is a black box with buttons on it, and once it is out you are holding the whole problem in one hand. Owners do this themselves all the time.
Then it comes to us. The resistor gets replaced, along with whatever else has accumulated in there over twenty years of Florida use. The panel goes back in your dash. The climate works.
We do not send it back until it works on the bench. So when a call comes later, we are not guessing about our own work.
The vans we fix do not come back to us. Everyone who has dealt with us already knows that.
ECU Team Corp is an electronic laboratory, not a shop. Florida. 35+ makes, 200+ verified part numbers. In this profession since 1995, starting in Europe.
If This Is Your Van
You know the symptom by now. It went from a nudge, to the maximum, to a coin flip, to hot and only hot. Maybe the knob already spins free.
You do not have to explain any of that to anyone.
Pull the panel and send it, with the part number off the back. ECU Team Corp, Florida. (888) 541-6025. WhatsApp (561) 385-5843.
More cases on our YouTube channel. We post every case we take in on Telegram.
